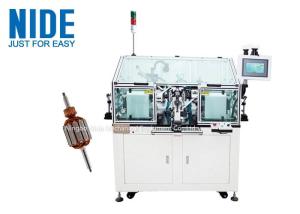

Slot Type Commutator Horizontal Winding Machine For Power Tool
1. This armature rotor Winding Machine is used for slot commutator armature winding.
2. This armature rotor coil Winding Machine is controlled by PLC.
3. This armature rotor Winding Machine's Main electrical components are imported from Korea and Japan.
4. This armature rotor winder Machine is suitable for power tool motor armature and it can wind
AUTOMATIC SLOT COMMUTATOR ARMATURE WINDINGM MACHINE
This machine is used for slot commutator armature winding, it can
wind automatically. Equipped with touch screen and PLC. Winding parameter could be set
and modified on the screen. We also have armature winding machine
equipped with conveyor, operator only need to put several pieces of
armature on the conveyor at one time, then machine will finish all
the armatures automatically. Below parameter is our standard
machine, we could produce machine according to customer's armature
Armature diameter range
Armature stack length
Armature slot number
Odd, oven slot
Flier fork speed
Step, Auto, JOG
1530mm x 1280 mm x 1650mm
Servo control system
Safety door and feeding device
Main electrical components
Korea and Japan
This machine is used for automatically hook type commutator
armature winding and power tool armature.
Information needed for Armature Winding Machine inquiry
It will be better if customer could send us detailed drawing
including below information.
1. Rotor lamination drawing
2. Rotor assemble drawing
3. Rotor stack drawing
4. Rotor winding diagram drawing: with rotor wire diameter and turn
5. Commutator drawing
6. Required productivity
7. Other technical requirement
If possible, it will be better if customer can send us samples.
