Horizontal Stator Insulation Paper Inserter Equipment Low Noise Fast Speed

Place of Origin : China
Brand Name : Nide
Certification : None
Model Number : CZDW1-190/210
MOQ : 1 set
Price : Negotiable
Packaging Details : Wooden case suitable for sea transportation
Delivery Time : 60 working days
Payment Terms : T/T, L/C
Contact Now

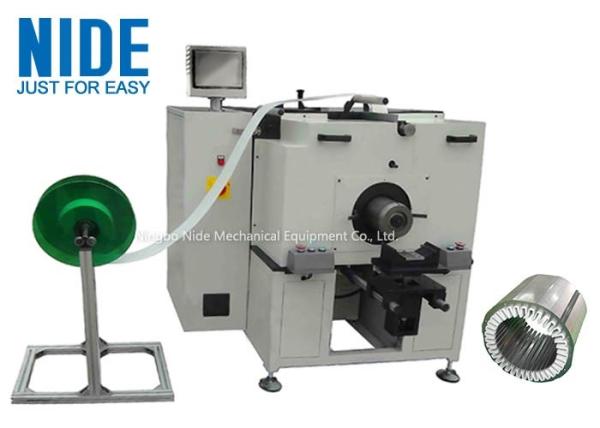

Horizontal Stator Insulation Paper Inserter Equipment Low Noise Fast Speed


Application:

It is suitable exclusively for large and medium-size motors, especially suitable for generator, deep pump motor,three phase machine, etc..


Quick Detail:

1. Model No.: CZDW1-190/210
2. It is suitable exclusively for large and medium-size motors.
3. This machine is characterized by low noise, fast speed, excellent forming,
4. it is convenient and easy for different slot number stator production and changing tooling.
5. It is suitable for generator, deep pump motor, three phase machine, etc..

Description:

Horizontal Stator Insulation Paper Inserting Machine is suitable exclusively for large and medium-size motors, inserting insulation paper automatically from bottom of stator slot; automatic paper feeding, edge folding and forming; characterized by low noise, fast speed, excellent forming, etc.; slot number change is controlled by electric; interval slot inserting and skip slot inserting could be at option; it is convenient and easy for different slot number stator production and changing tooling. Especially suitable for generator, deep pump motor,three phase machine, etc..



Technical Parameter:

Stator ID

φ80-φ150

Stator Laminated thickness

60-190mm

Height of edge folded

3-7mm

Max insulation paper'sthickness

0.35mm

Feeding length

15-50

Tack time

0.7-1 S/slot

Power

380V 50- 60HZ

Dimension

1100*900*1500mm

Weight

550KG


Competitive advantages:

This machine is characterized by low noise, fast speed, excellent forming, it is convenient and easy for different slot number stator production and changing tooling.


Besides the paper inserting machine, we also supply insulation material for stators or armatures, with different thermal class and dimension.
